01

PPE- Pre Production Engineering

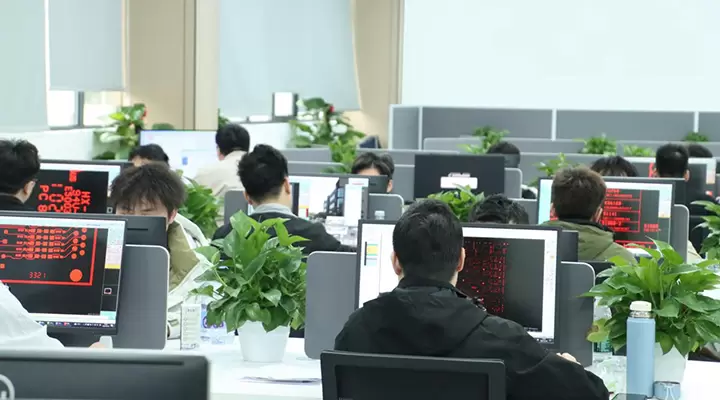

Customer supplied data (gerber) is used to produce the manufacturing data for the specific PCB (artworks for imaging processes and drill data for drilling programs). Engineers compare demands/specifications against capabilities to ensure compliance and also determine the process steps and associated checks.

02

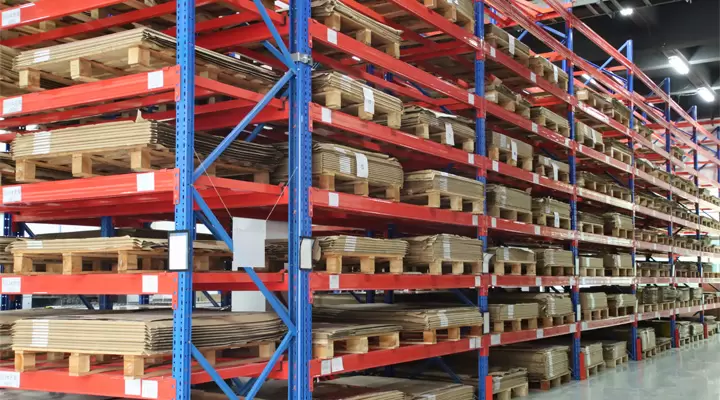

Material issue

Material of various types are received from approved sources and held in controlled environments until required. Using FIFO systems, specific material is released into production for a specific purchase order with base materials cut to the required sizes. All materials used can be traced back to their manufacturing batch.

03

Inner layer

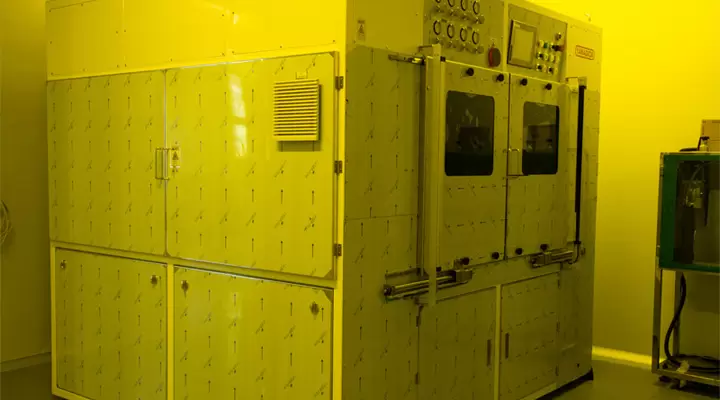

Stage 1 is to transfer the image using an artwork film to the board surface, using photosensitive dry-film and UV light, which will polymerise the dry film exposed by the artwork. This step of the process is performed in a clean room.

04

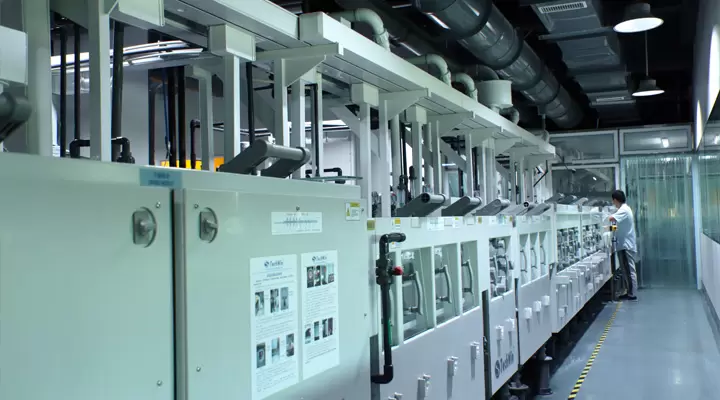

Inner layer etch

Stage 2 is to remove the unwanted copper from the panel using etching. Once this copper has been removed, the remaining dry film is then removed leaving behind the copper circuitry that matches the design.

05

Inner layer AOI

Inspection of the circuitry against digital “images” to verify that the circuitry matches the design and that it is free from defects. Achieved through scanning of the board and then trained inspectors will verify any anomalies that the scanning process has highlighted.

06

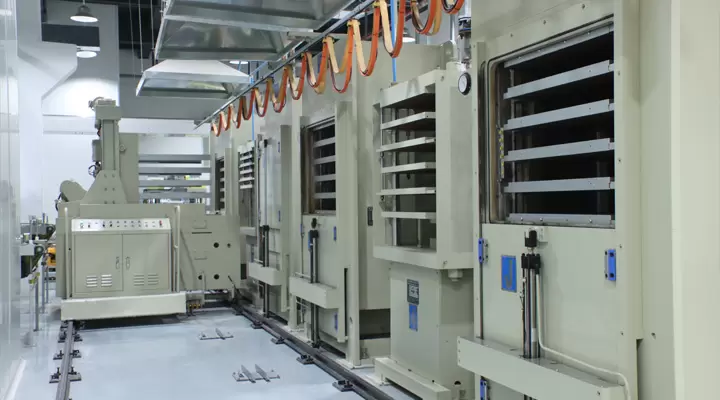

Lamination

The inner layers have an oxide layer applied and then “stacked” together with pre-preg providing insulation between layers and copper foil is added to the top and bottom of the stack. The lamination process uses a combination of specific temperature, pressure for a specific time to allow the resin within the pre-preg to flow and bond the layers together to form a solid multilayer panel.

07

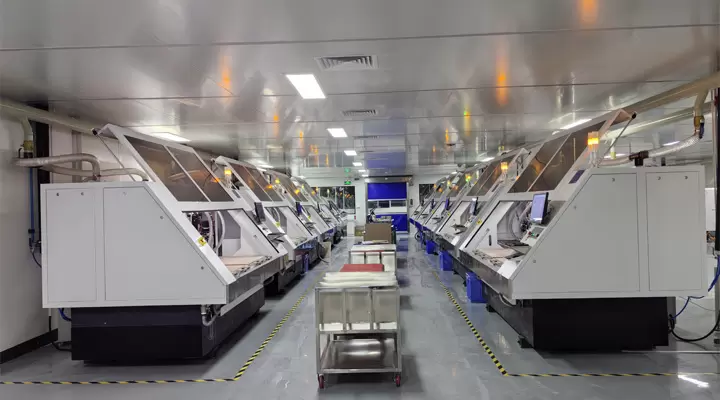

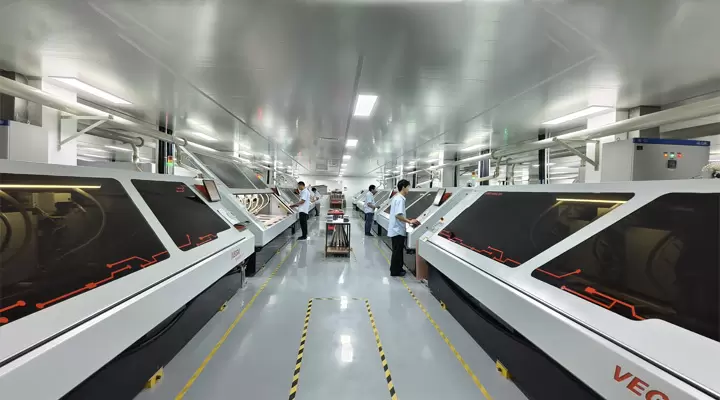

Drilling

We now have to drill the holes that will subsequently create electrical connections within the multilayer PCB. This is a mechanical drilling process that must be optimised so that we can achieve registration to all of the the inner layer connections. The panels can be stacked at this process. The drilling can also be done by a laser drill.

08

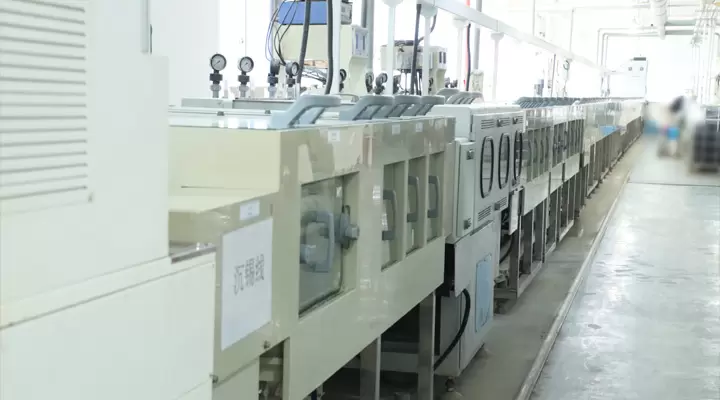

PTH- Plated Through Hole

PTH provides a very thin deposit of copper that covers the hole wall and the complete panel. A complex chemical process that must be strictly controlled to allow a reliable deposit of copper to be plated even onto the non-metallic hole wall. Whilst not a sufficient amount of copper on its own, we now have electrical continuity between layers and through the holes.

09

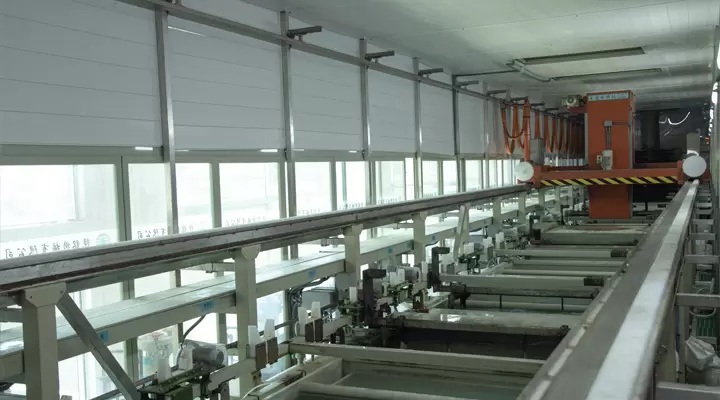

Panel plating

Panel plating follows on from PTH to provide a thicker deposit of copper on top of the PTH deposit – typically 5 to 8 um. The combination is used to optimise the amount of copper that is to be plated and etched in order to achieve the track and gap demands.

10

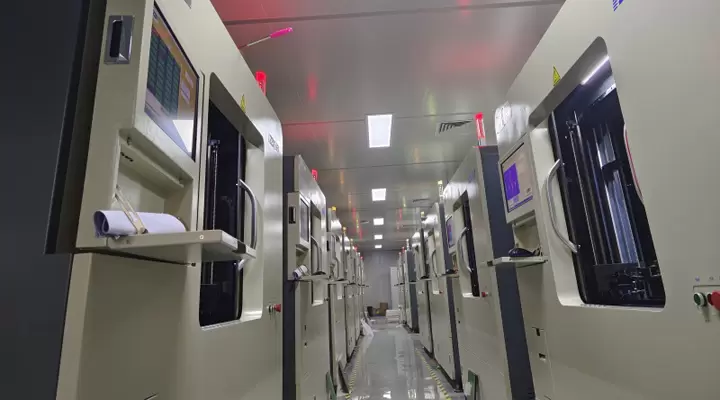

Outer layer image

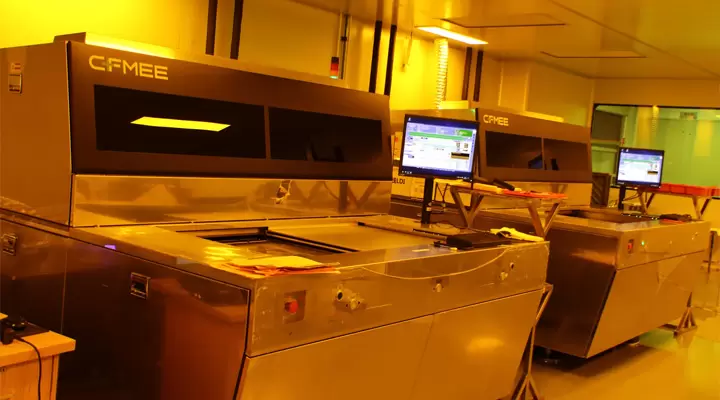

Similar to the inner layer process (image transfer using photosensitive dry film, exposure to UV light and etching), but with one main difference – we will remove the dry film where we want to keep the copper/define circuitry – so we can plate additional copper later in the process.This step of the process is performed in a clean room.

11

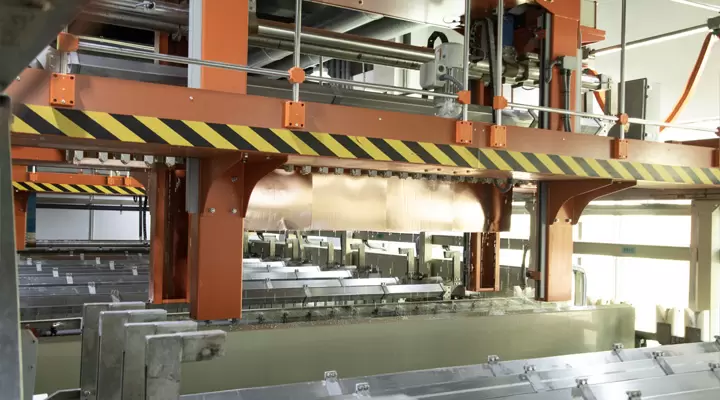

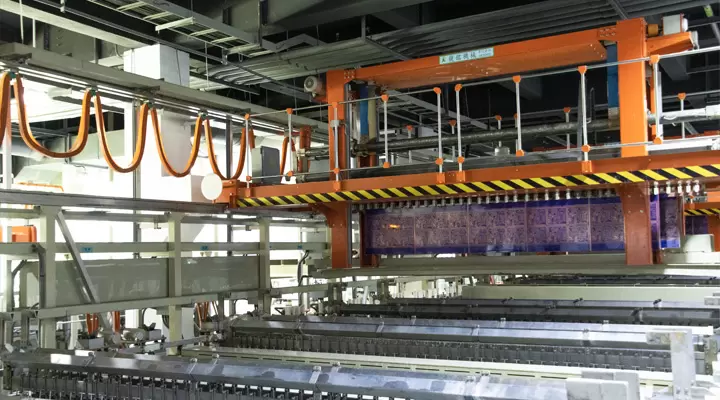

Pattern plate

Second electrolytic plating stage, where the additional plating is deposited in areas without dry film (circuitry). Increases the plating thickness and average of 25um / min 20um through the hole. Once the copper has been plated, tin is applied to protect the plated copper.

12

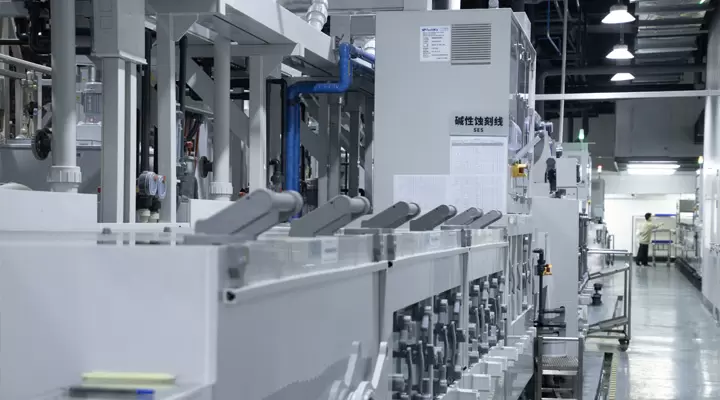

Outer layer etch

This is normally a three step process. The first step is to remove the blue dry film. The second step is to etch away the exposed/unwanted copper whilst the tin deposit acts an etch resist protecting the copper we need. The third and final step is to chemically remove the tin deposit leaving the circuitry.

13

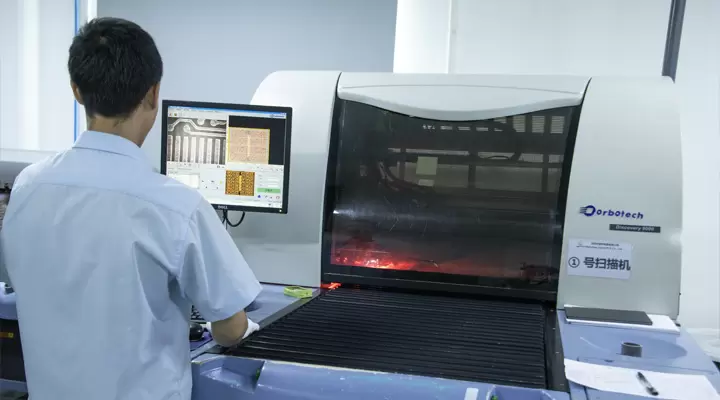

Outer layer AOI- Automated Optical Inspection

Just like with inner layer AOI the imaged and etched panel is scanned to make sure that the circuitry meets design and that it is free from defects.

14

Soldermask

Soldermask ink is applied over the whole PCB surface. Using artworks and UV light we expose certain areas to the UV and those areas not exposed are removed during the chemical development process – typically the areas which are to be used as solderable surfaces. The remaining soldermask is then fully cured making it a resilient finish. This step of the process is performed in a clean room.

15

Silkscreen

The desired characters, logos, or markings are printed onto the PCB surface using a specialized ink or legend printing process. Using artwork and precise alignment, the text is applied to designated areas, typically for component labeling, polarity indicators, or other identification purposes. The applied ink is then cured, often through UV exposure or thermal drying, ensuring a durable and legible finish. This step is performed in a controlled environment to maintain accuracy and cleanliness.

16

Surface finish

Various finishes are then applied to the exposed copper areas. This is to enable protection of the surface and good solderability. The various finishes can include Electroless Nickel Immersion Gold, HASL, Immersion Silver etc. Thicknesses and solderability tests are always carried out.

17

Profiling

This is the process of cutting the manufacturing panels into specific sizes and shapes based upon the customer design as defined within the gerber data. There are 3 main options available when providing the array or selling panel – scoring, routing or punching. All dimensions are measured against the customer supplied drawing to ensure the panel is dimensionally correct.

18

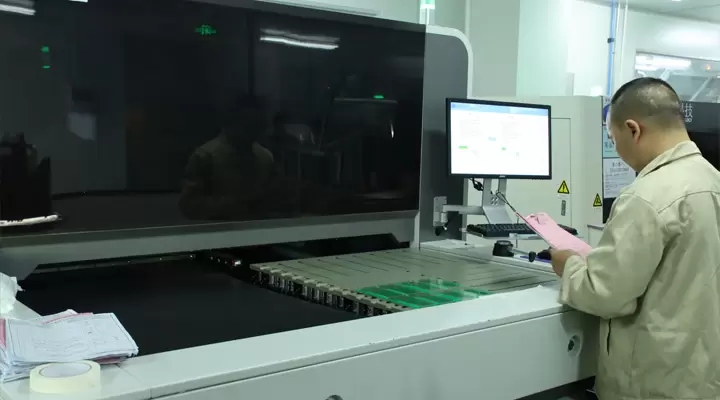

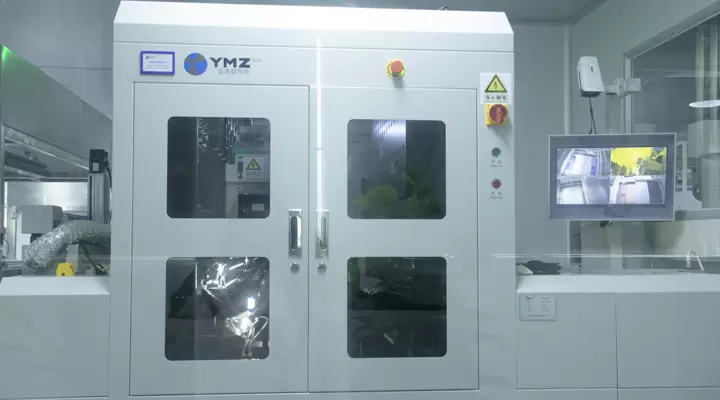

ET- Electrical Test

Used for checking the integrity of the tracks and the through hole interconnections – checking to ensure there are no open circuits or no short circuits on the finished board. There are two test methods, flying probe for smaller volumes and fixture based for volumes.

19

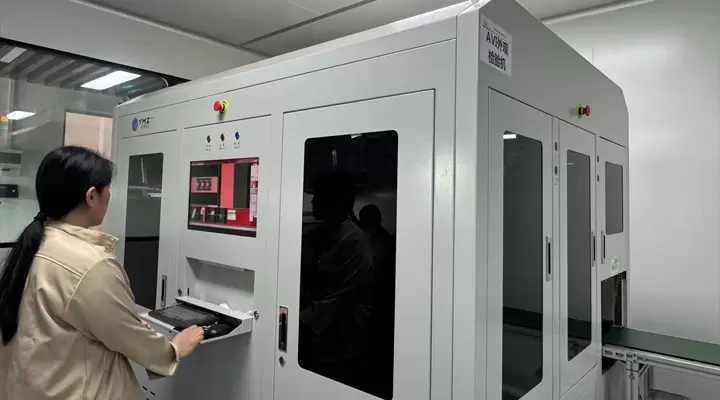

Final inspection

Using manual visual inspection and AVI – compares PCB to gerber and has a faster checking speed that human eyes, but still requires human verification. All orders are also subjected to a full inspection including dimensional, solderability, etc.

20

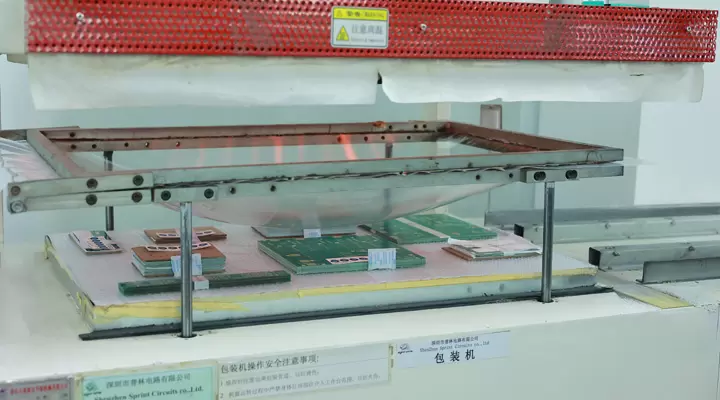

Packaging

Boards are wrapped and then boxed prior to be being shipped using the requested mode of transport.
