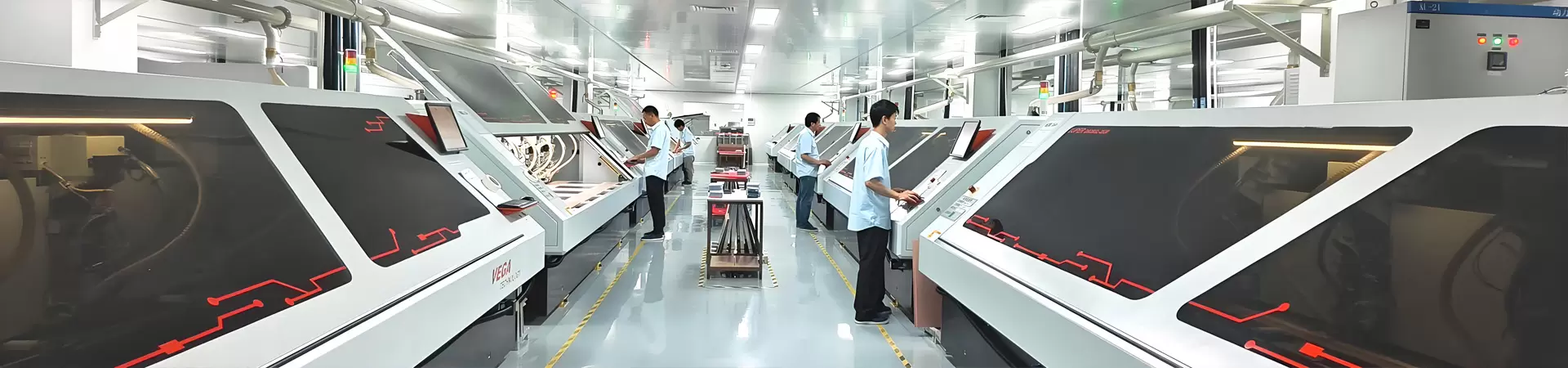

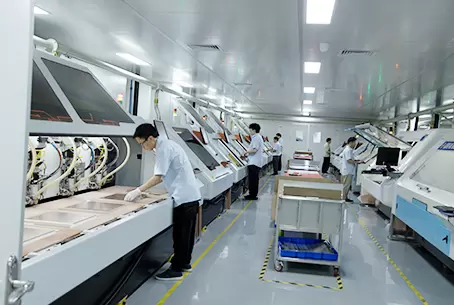

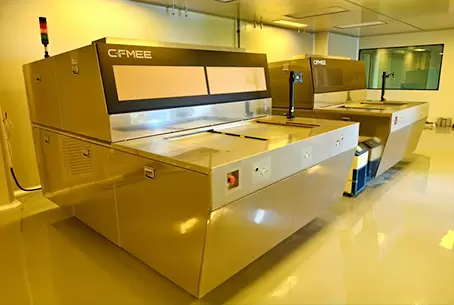

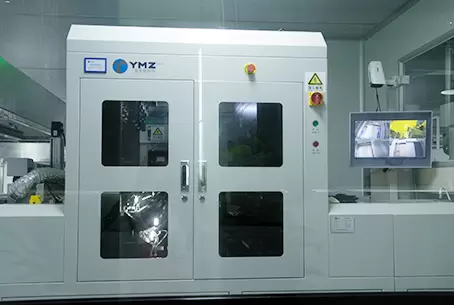

What We’re Built To Deliver

Feature	Prototype	Volume
Layers count	1-60L	1-20L
Board thickness	0.3-6.0mm	0.4-4.0mm
Min. board size	20mm x 24mm	20mm x 24mm
Max. board size	546mm x 662mm	546mm x 662mm
Min. line/space innerlayer (depend on copper weight)	22.5mil/2.5mil	3mil/3mil
Min. line/space innerlayer (depend on copper weight)	22.5mil/2.5mil	3mil/3mil
Surface finish types	OSP, HASL LF, ENIG, Immersion Silver, Immersion Tin, Hard gold (Connector board)
Mechanical hole size (Finish hole size)	0.15 mm	0.15 mm
Max. aspect ratio PTH	10	12
Finished tolerance PTH	+/-0.05 mm	+/-0.075 mm
Finished tolerance NPTH	+/-0.05 mm	+/-0.05 mm
Epoxy filled through holes (Y/N)	Y	Y
Capped via (Y/N)	Y	Y
Counter Sink (Y/N)	Y	Y
Side Plating (Y/N)	Y	Y
Max. copper weight outerlayer	6 oz	6 oz
Max. copper weight innerlayer	6 oz	6 oz
Control depth drill (Y/N)	Y	Y
Drill depth tolerance	+/-0.15 mm	+/-0.2 mm
HDI type	2 + N + 2	3 + N + 3
Min. laser hole diameter	0.075mm	0.1 mm
Copper filled microvia	Y	Y
Resin filled microvia	Y	Y
Stacked &Staggered via	Y	Y
Flex boards	Y	Y
IMS boards	Y	Y
Embedded components	N	Y
Soldermask via plugging IPC4761 type VI	Y	Y
Soldermask via plugging IPC4761 type VI	Y	Y

Standard (Rigid Materials)

Name	Type	Tg	Dk(1GHZ)	Df(1GHZ)	IPC4101
185HR	FR4	180	4.04	0.0192	21/24/26/98/99/101/126
IT-158	FR4	150	4.3	0.016	99
IT-180A	FR4	175	4.4	0.015	99/101/126
NY2150	FR4	150	5.4	0.035	98/99/101
NY2170	FR4	175	5.4	0.035	98/99/101/126
S1000-2/S1000-2M	FR4	180	4.6	0.018	126
S1000H	FR4	150	4.6	0.011	99
S1151G	FR4	150	4.6	0.011
S1190	FR4	190	4.6	0.015	126
TU-768	FR4	180	4.3	0.019	21/24/26/28/98/99/101/106

RF (Rigid Materials)

Name	Type	Tg	Dk(1GHZ)	Df(1GHZ)	IPC4101
AD1000/AD1000L	PTFE	/	10.2	0.0023
RF-35	ceramic filler	315	3.5	0.0018
RF-60TC	PTFE	/	6.15	0.002
RO3003	PTFE	/	3	0.0013
RO3006	PTFE	/	6.15	0.002
RO4003C	ceramic filler	280	3.38	0.0027	IPC-4103A/240
RO4003C Lopro	ceramic filler	280	3.38	0.0027
RO4350B	ceramic filler	280	3.5	0.0037	IPC-4103A/240
RO4350B Lopro	ceramic filler	280	3.5	0.0037	IPC-4103A/240
RO4533	ceramic filler	280	3.3	0.0022
RO4725JXR	ceramic filler	280	2.55	0.0022
RO4725JXR lopro	ceramic filler	280	2.55	0.0022
RO4730G3	ceramic filler	280	3	0.0023
RO4835	ceramic filler	280	3.5	0.003
RO4835 Lopro	ceramic filler	280	3.5	0.003
RT5880	PTFE	/	2.2	0.0009
RT6002	PTFE	/	2.94	0.0012
RT6010LM	PTFE	/	10.2	0.0023
TLX-8	PTFE	/	2.55	0.0018
ZYF265D	PTFE	/	2.65	0.001

RF (FR4 Rigid Materials)

Name	Type	Tg	Dk(1GHZ)	Df(1GHZ)	IPC4101
FR408 HR	FR4	200	3.69	0.0091	21/24/98/99/101/126
IT-170GRA1	FR4	170	3.9	0.008
IT-968	FR4	185	3.78	0.0034
ITERA-MT-40 R-5785N/ M7N	FR4	200	3.4	0.002
R-5725S/ M4S	FR4	200	3.8	0.007
R-5775G/ M6G	FR4	185	3.71	0.0021
R-5775N/ M6N	FR4	185	3.71	0.0021
R-5785/M7	FR4	200	3.4	0.002
TU-862HF	FR4	180	4.4	0.01	127/128/130
TU-872 SLK	FR4	190	3.8	0.011	29/99/101/126
TU-872 SLK SP	FR4	190	3.4	0.004	29/99/101/126

Standard (Flex Materials)

Name	Type	Tg	Dk(1GHZ)	Df(1GHZ)	IPC4101
DuPont AP	Polyimide	/	3.4	0.02	IPC 4204/11
RF-775	Polyimide	/	3.2	0.0016
RF-777	Polyimide	/	3.4	0.0016
SF305	Polyimide	/	3.31	0.0188	IPC-4204/2
Thinflex W	Polyimide	/	3.3	0.01

Other Special Materials

Name	Type	Tg	Dk(1GHZ)	Df(1GHZ)	IPC4101
85N	Polyimide	250	4.2	0.01	41
2929 Bondply	Bondply	170	2.94	0.003
AD1000™	PTFE	/	10.2	0.0023
F4BM-1/2	PTFE	/	2.2-3.0	/
GF265	PTFE	/	2.65	0.0017
IT150DA	FR4	180	3.64	0.0025
LNB33	Ceramic Filler	280	3.3	0.0025
N4000-13/EP/SI	FR4	210(DSC)	3.1	0.0084	29
N4800-20/SI	FR4	200	3.29	0.0061	73
RO4000LoPro	Ceramic Filler	280	3.5	0.0027	IPC-4103A/240
RO4450F PP	Bondply	280	3.52	0.04
S1150G	FR4	155	4.5	0.009	128
TMM® 10 Laminates	Ceramic Filler	/	9.8	0.0022
TU933(T3)	FR4	170	3.4	0.0025	IPC-4204/102
VT901	Polyimide	250	4.05	0.0012	73
ZYF300CA	PTFE	/	3	0.0019
