Understanding Circuit Board Manufacturing: A Complete Guide for PCB Buyers

In the world of electronics, Circuit Board Manufacturing is at the core of nearly every device. From smartphones to industrial machinery, circuit boards—commonly known as PCBs—serve as the foundation for electrical connections and system control. For businesses and engineers sourcing PCBs, understanding how Circuit Board Manufacturing works can significantly improve product quality, reduce lead times, and ensure cost-effective production.

What Is Circuit Board Manufacturing?

Circuit board manufacturing refers specifically to the fabrication of printed circuit boards (PCBs), which involves processes such as sheet cutting, etching, drilling, plating, and surface finishing. These boards provide mechanical support and establish electrical connections for electronic components through conductive tracks, pads, and other structures etched from copper sheets laminated onto a non-conductive substrate. This process involves multiple precise steps to create reliable PCBs used in various industries such as telecommunications, automotive, medical, and consumer electronics.

Key Steps in Circuit Board Manufacturing

At SprintPCB, we focus on high-quality, precision-driven PCB production. Here’s a simple breakdown of the essential steps involved in our Circuit Board Manufacturing process:

1. Gerber File Reception and Review

   The engineering team uses specialized software to perform a comprehensive review of the Gerber files, evaluating design completeness, manufacturability, layer stack-up, and process parameters. This ensures the design is compatible with factory capabilities and meets the customer's technical requirements.

2. Sheet Cutting

   According to the production dimensions and order requirements, large copper-clad laminates are precisely cut into the required sizes, labeled, and inspected for quality to prepare for subsequent processing.

3. Inner Layer

   The inner layer circuit pattern is created by transferring the design onto the copper-clad laminate, followed by exposure, developing, etching, and stripping processes to form precise circuit patterns.

4. Layer Alignment and Lamination

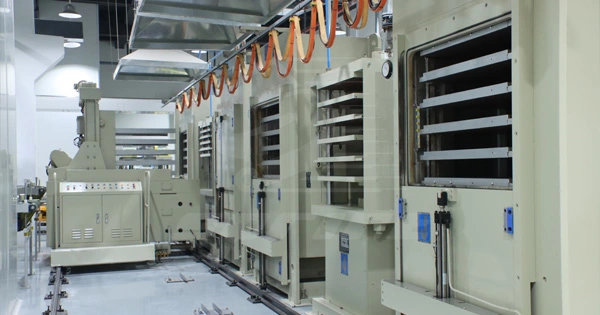

   For multilayer PCBs, the inner layers are carefully aligned and bonded together with prepreg and copper foil using heat and pressure. This ensures structural integrity and accurate alignment of all layers.

5. Drilling

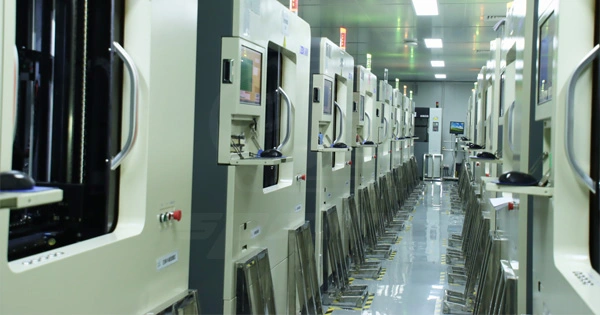

   High-speed CNC drilling machines create precise holes for vias and component leads, enabling electrical connections between different layers.

6. Plating and Copper Deposition

   The drilled holes are chemically plated with copper to establish conductive paths between layers. This step is critical for forming reliable interconnections.

7. Outer Layer

   Similar to the inner layer process, the outer layer circuitry is defined through exposure, development, etching, and stripping. This forms the external conductive traces on the PCB.

8. Solder Mask Application

   The solder mask layer protects the circuit by applying green or other color solder mask to prevent short circuits and oxidation.

9. Silkscreen Printing

   Component labels, reference designators, polarity indicators, and other markings are printed on the board using silkscreen techniques. These help during assembly, inspection, and maintenance.

10. Surface Finishing

    To enhance solderability and protect exposed copper areas from oxidation, surface finishes such as HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), or OSP (Organic Solderability Preservative) are applied.

11. Electrical Testing and Quality Control

    Each PCB undergoes rigorous electrical testing and visual inspection to ensure it meets performance specifications and quality standards before shipping.

Types of PCBs We Manufacture

At SprintPCB, our Circuit Board Manufacturing capabilities cover a wide range of PCB types to match specific client needs:

• Multilayer PCBs: Widely used for more complex circuits with moderate density.
• Flexible and Rigid-Flex PCBs:Designed for space-saving and dynamic applications, such as wearables and foldable electronics.
• HDI PCBs (High-Density Interconnect): Featuring finer lines and spaces, microvias, and high component density for advanced miniaturized electronics.
• High-Frequency and High-Speed PCBs:Engineered for superior signal integrity and minimal loss, suitable for RF, microwave, and high-speed digital applications.

Why Quality Matters in Circuit Board Manufacturing

High-quality Circuit Board Manufacturing ensures your final electronic product works efficiently and reliably. At SprintPCB, we understand that every PCB is the core of an electronic system. Poorly manufactured boards can result in system failure, high repair costs, and product recalls. That's why we apply rigorous quality checks at every stage of production, including AOI, flying probe testing, and thermal stress evaluation.

Turnaround Time and Prototyping

Quick production is essential for today’s fast-paced product development cycles. SprintPCB offers fast and flexible Circuit Board Manufacturing services, including same-day prototypes and short-run production for engineers and startups. For high-volume orders, we maintain consistency and repeatability through advanced automation and experienced technicians.

Materials Used in Circuit Board Manufacturing

The selection of materials plays a critical role in determining the electrical performance, thermal stability, mechanical strength, and overall cost of a PCB. At SprintPCB, we use a variety of high-quality materials to match the technical and environmental requirements of different applications:

• FR4A widely used fiberglass-reinforced epoxy laminate known for its good electrical insulation, mechanical strength, and flame resistance. It is suitable for most standard applications.
• High-Tg MaterialsThese offer higher glass transition temperatures, providing improved thermal stability and reliability for applications involving prolonged exposure to heat, such as automotive electronics or industrial control systems.
• Rogers & PolyimideRogers materials feature low dielectric loss and stable performance at high frequencies, ideal for RF and microwave circuits. Polyimide is known for its flexibility and excellent thermal endurance, making it suitable for flexible and rigid-flex PCBs.

Choosing the right materials during the circuit board manufacturing process ensures the final product meets the intended environmental, electrical, and mechanical requirements.

Industries We Serve with Circuit Board Manufacturing

SprintPCB supports various industries with tailored Circuit Board Manufacturing solutions:

• Consumer Electronics: Smart devices, wearables, and appliances.
• Automotive: Engine control units, infotainment, and sensors.
• Telecommunications: Routers, switches, and transmission devices.
• Medical Equipment: Diagnostic tools, monitors, and imaging systems.
• Industrial Automation: Motor controls, PLCs, and power converters.

Why Choose SprintPCB for Circuit Board Manufacturing?

As a trusted manufacturer, SprintPCB delivers reliable and scalable Circuit Board Manufacturing solutions with a focus on:

• Consistent Quality: ISO-certified processes and 100% inspection.
• Fast Turnaround: Rapid prototyping and timely mass production.
• Global Shipping: Fast delivery to North America, Europe, and Asia.
• Customer Support: Responsive engineering team and dedicated service.
• Competitive Pricing: Direct factory prices with no hidden fees.



Partner with SprintPCB for Your Next Project

Whether you're a product designer, OEM, or startup, understanding Circuit Board Manufacturing helps you make better sourcing decisions. SprintPCB combines precision manufacturing with customer-centered service to help you bring innovative products to market faster and more efficiently. Let’s build better electronics together—starting with your next PCB order.
