Supercharge Your Production Efficiency with 4 Advanced PCB Panelization Methods

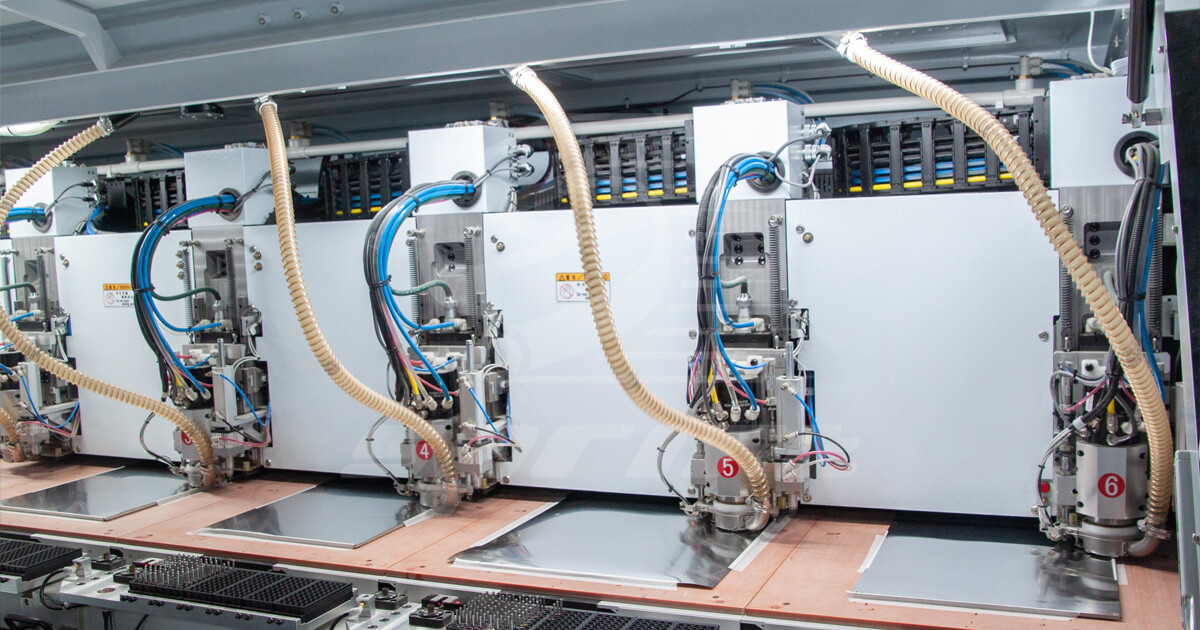

In today's fast-paced electronic manufacturing industry, improving production efficiency is a crucial task. In the PCB manufacturing process, panelization is a widely adopted strategy that can significantly enhance production efficiency and improve product quality. To further drive improvements in production efficiency, the adoption of advanced panelization methods has become a current trend. [embed]https://youtu.be/wRHciWUFAcQ[/embed] This article will guide you through the exploration of four advanced PCB panelization methods that not only enhance production efficiency but also reduce errors and defects, thereby improving overall product quality. Firstly, we will explain what panelization is and why it is crucial for PCB production. Panelization is a manufacturing technique that involves grouping multiple PCB boards together on a larger panel. By placing multiple boards on a single panel for manufacturing, batch production and centralized management can be achieved, significantly improving production efficiency. The main purpose of panelization is to facilitate the smooth movement of PCB boards on the assembly line. Each board on the panel can have the same or different designs. Once production is complete, the panel can be easily separated into individual PCB boards. One of the advantages of panelization is the ability to optimize the production of small-sized or irregularly shaped PCB boards. For PCB boards smaller than 50 millimeters by 50 millimeters, panelization is highly recommended. By grouping multiple PCB boards together on a panel, manufacturers can simplify the assembly process, reduce production time, and lower costs. In addition, panelization offers the following benefits: Improved efficiency: Panelization allows for simultaneous handling of multiple PCB boards during the manufacturing process, reducing wait times and improving overall efficiency. Simplified assembly and testing: By placing multiple PCB boards on a single panel, the assembly and testing processes are streamlined. Assembly personnel can easily work with the panel, performing soldering and testing operations more efficiently. Reduced errors and damage: Panelization reduces the chances of individual handling of each PCB board, thereby lowering the risks of human errors or damage that can occur during the handling process. Understanding the concept of PCB panelization is crucial for optimizing the production process through this manufacturing technique. It provides designers, manufacturers, and assembly personnel with a more efficient and reliable solution for PCB manufacturing. Next, we will delve into four advanced panelization methods: V-Scoring, Tab-Routing, Breakaway Rails, and Controlled Layer Separation. We will explore the working principles, applications, and advantages of each method in detail. By understanding the characteristics and scope of these methods, you will be able to choose the most suitable panelization method for your project requirements. [embed]https://youtu.be/pl_mooLZhIc[/embed]

PCB Panelization Methods： V-Scoring

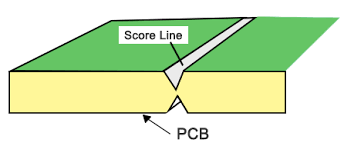

V-Scoring is a commonly used panelization method that involves cutting V-shaped grooves on a panel to separate individual circuit boards. This method is suitable for panels with regular shapes. The main advantages of V-Scoring are high efficiency and low cost. It allows for quick and accurate separation of circuit boards and is simple to implement. However, V-Scoring is not suitable for panels with irregular shapes or complex cuts. Additionally, it is not suitable when components on the circuit board hang over the edge, as they may be damaged during the separation process.

PCB Panelization Methods： Tab-Routing

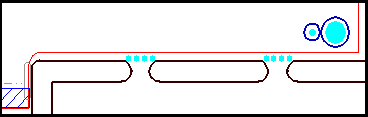

Tab-routing is a flexible panelization method suitable for irregularly shaped PCBs. It involves creating small connecting tabs, known as "Tabs," along the edges of each circuit board to hold them together. These tabs can be created through cutting or drilling, providing temporary support during assembly and testing. The advantages of tab-routing lie in its ability to accommodate irregular shapes and components that extend beyond the board's edge. Additionally, the design of the tabs must be robust to ensure easy cutting or breaking after assembly and testing. Typically, there are additional holes or perforations on the tabs to aid in separating individual circuit boards, ensuring even stress distribution along the board's edge, and reducing the risk of damage or deformation.

PCB Panelization Methods： Breakaway Rails

Breakaway rails are a panelization method that involves adding thin strips of material to the edges of a panel to provide additional support. These breakaway rails typically have a width ranging from 5 to 8 millimeters. They offer extra stability to the panel during the manufacturing process. Once the circuit boards are assembled and tested, the breakaway rails can be easily broken off, separating each individual circuit board. The advantage of this method lies in the simplicity of adding and breaking off the breakaway rails, while leaving smooth and burr-free edges on the circuit boards.

PCB Panelization Methods： Controlled Layer Separation

Controlled Layer Separation is a panelization method suitable for specific scenarios. It utilizes the specific layer structure of a panel to separate circuit boards by separating the control layers. This method is used for complex multilayer PCBs where control layers are employed to create separation points. The advantages of Controlled Layer Separation include improved production efficiency and reduced risk of damage and deformation during the separation process. Careful consideration of the control layer's positioning and implementation details is necessary during the design process to ensure the successful implementation of this panelization method. By understanding these four advanced panelization methods, you can choose the most suitable method to improve production efficiency and product quality based on the characteristics and requirements of your PCB design. Each method has its unique advantages and scope of application, so it is important to carefully evaluate and select the appropriate panelization method during the design process. Before selecting a panelization method, ensure a thorough understanding of the specific requirements of the project. Consider factors such as the size, shape, component layout, and production volume of the PCB to determine the most suitable panelization method. Evaluate the impact of different panelization methods on production efficiency and costs. Consider the equipment and process requirements of each method, as well as the potential improvements in production efficiency and cost savings. Ensure that the chosen panelization method does not compromise the quality and reliability of the PCB. Evaluate the impact of each method on the circuit board and components, especially when dealing with complex shapes, sensitive components, or high-frequency signals. Collaborate with manufacturers or PCB assembly service providers and discuss their recommendations and insights. They have extensive experience and expertise and can provide targeted advice based on project requirements. Consider the future scalability and adaptability when selecting a panelization method. If an increase in production volume or product line improvements are anticipated, choosing a flexible and adjustable panelization method may be advantageous. Conduct experiments and validations before finalizing the panelization method. Create sample boards for testing and evaluation to ensure that the chosen method meets the expected production results and quality standards. Stay up to date with the industry's developments and advancements in panelization technologies and methods. Attend relevant seminars, exhibitions, and training courses, and engage in knowledge-sharing with professionals to continuously learn and improve panelization decisions.Lastly, we will share some successful case studies that demonstrate the practical application and effectiveness of advanced panelization methods in production. Company A is a company specializing in the production of high-performance electronic devices. They utilize the V-scoring panelization method in PCB production. By combining multiple PCB boards on a larger panel, they have achieved an efficient production process. With the V-scoring method, they have successfully separated PCB boards of different sizes and shapes, reducing congestion on the production line and minimizing manufacturing errors. This improvement has allowed them to deliver products on time and enhanced overall production efficiency. Company B is a specialized company that designs and manufactures electric vehicle chargers. In order to improve production efficiency, they have adopted the tab-routing panelization method. The tab-routing method allows them to conveniently handle PCB boards with irregular shapes and components that hang over the edge. By designing tabs with appropriate strength, they can ensure that the PCB boards are securely held in place during assembly and testing, while also allowing for easy cutting or separation after assembly. This panelization method provides them with flexibility and efficiency, enabling them to quickly respond to market demands and deliver high-quality charger products. Company C is a manufacturer specializing in communication equipment. They have adopted the breakaway rails panelization method in their PCB production. By adding breakaway rails at the edges of the panel, they are able to better control vibrations and deformations during the production process. Once the circuit boards are assembled and tested, they can easily detach the breakaway rails, leaving behind clean and smooth edges, ensuring high-quality PCB products. This panelization method has significantly improved their production efficiency and reduced product quality issues caused by damage or deformations during the manufacturing process. Company D is a company specializing in the manufacturing of aerospace electronic products. To meet high requirements for signal integrity, they adopted the controlled layer separation panelization method. By incorporating controlled layer separation in their designs, they are able to effectively isolate high-speed signals from low-speed signals, reducing crosstalk and electromagnetic interference. This technological improvement contributes to enhanced immunity against interference and improved signal quality, minimizing the risks of performance degradation or failures. Company D has successfully implemented this panelization method, resulting in increased production efficiency and reliability of their aerospace electronic products. These case studies will emphasize the actual results of these methods in improving production efficiency, reducing errors, and enhancing product quality, further demonstrating the benefits of adopting advanced panelization methods. By reading this article, you will learn how to supercharge your PCB production efficiency by using these advanced panelization methods. We encourage you to implement these methods in your actual production and reap the significant benefits of increased efficiency and improved product quality. Let's delve deeper into these advanced panelization methods and embark on a new chapter in PCB manufacturing.

---
