Choosing the right printed circuit board (PCB) manufacturer is crucial to ensuring the proper functioning of your product. With numerous manufacturers to choose from, finding one that can produce your required PCBs reliably, efficiently, and cost-effectively can be a challenge. To assist you in this important decision, we have created a guide highlighting the key factors you should consider. Let's explore these factors in detail.
Questions to Keep In Mind When Choosing a PCB ManufacturerTo make an informed decision when selecting a manufacturer, it is advisable to prepare a list of questions. These queries can be answered through various means such as conducting research using the manufacturer's website, online reviews, and other online resources. Additionally, you may directly approach the company and ask them the questions to obtain the answers you need.
To determine if a particular PCB manufacturer is the best fit for your project, consider asking the following questions:
-
- How long have you been in the PCB manufacturing industry?
Experience is critical in this field as it indicates the manufacturer's level of knowledge, resources, and ability to adapt to industry changes over time.
-

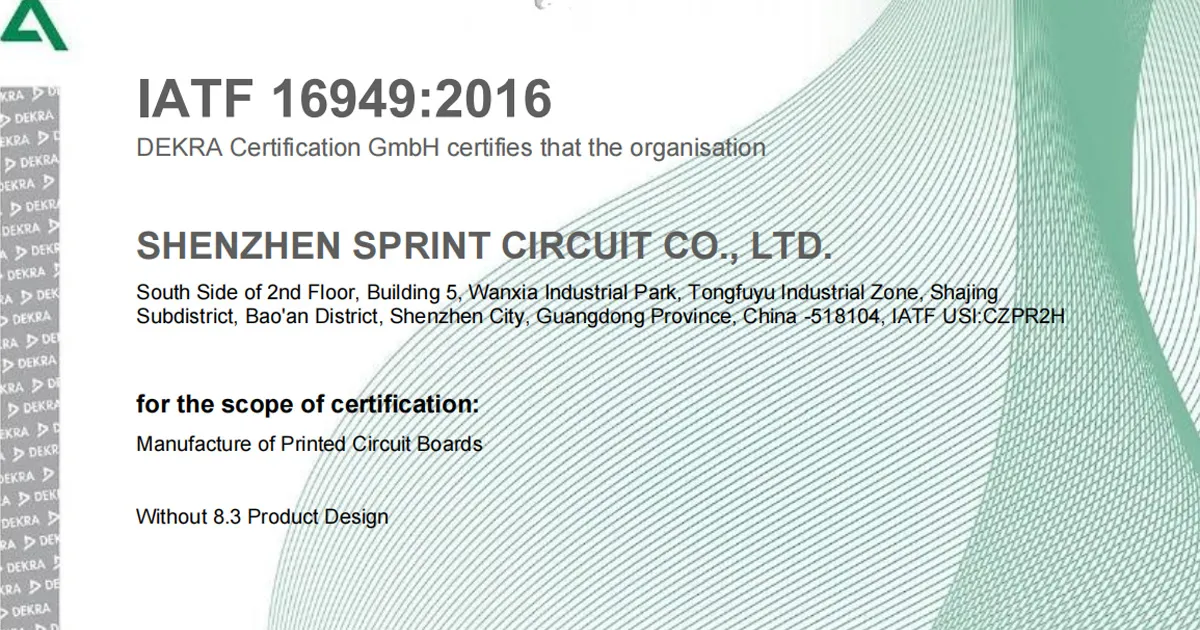

- What certifications do you possess?
Certifications provide insight into the manufacturer's qualifications. Typically, a third party verifies that the company complies with a standard or requirement to receive certification. Ensure that the manufacturer can comply with all relevant standards, including broad regulations such as RoHS and industry-specific requirements. Working with a company experienced in your industry can be beneficial.
-
- What sets your company apart?
This question can help you make a final decision among several similar manufacturers offering the products and services you need. Consider the value-added services each manufacturer offers and ask their representatives what they believe sets their organization apart.
What to Consider Before Choosing a PCB ManufacturerWhen searching for a PCB manufacturer, it can be challenging to make a decision due to the vast number of options available, and the apparent similarity between many of the companies. To streamline your search, it's essential to investigate crucial factors such as a company's products, services, capabilities, and facilities early on in the process.
1. ProductsTo begin with, it's crucial to identify the range of products offered by a PCB manufacturer and confirm if they meet your requirements. If the manufacturer specializes in the kind of products you need, it can be an added advantage. It's also important to investigate the price and quality of their products. The following factors should be taken into account while evaluating the manufacturer's offerings.
-
- Types of Boards and Substrates: Inquire about the kinds of PCBs they manufacture, such as rigid, flexible, and rigid-flex boards, metal core, aluminum-backed, and hybrid boards. Additionally, it's essential to find out the substrates used in their boards. For instance, aluminum boards provide high thermal conductivity and excellent electrical insulation, whereas heavy copper boards are ideal for high current applications.
-
- Specialty Boards: It's necessary to ascertain if the manufacturer offers any specialty boards that may be required for unusual projects. These include high density interconnect (HDI), high-speed digital, radio frequency and microwave, IC substrate and interposer, ENEPIG, and ceramic PCBs.
-
- Product Quality: The quality of the boards and the quality control processes used by the manufacturer must be examined.
Price: The cost of PCBs is a crucial factor that should not be overlooked. While cost optimization is important, it is equally essential to ensure that the quality of the boards remains sufficient. It is necessary to choose a manufacturer that can provide high-quality products that meet your quality standards while remaining within your budget.
One aspect to consider while assessing cost is the initial quote provided by the manufacturer. Once you provide the manufacturer with the project details, they can give you a quote. It is advisable to confirm with the manufacturer if there will be any additional fees added to the estimate later in the order process.
Furthermore, it is recommended to inquire about any discounts or special arrangements for bulk orders or return customers. Some manufacturers may offer these incentives, which can help you save costs.
Industries They Serve: It is crucial to determine the industries a manufacturer has experience serving and whether they specialize in serving any particular industry. Different industries have varying requirements for PCBs. For instance, smartphone manufacturers require smaller and higher-density boards, while the aerospace industry requires boards that can perform reliably under extreme conditions. Due to these differences in needs, many manufacturers specialize in serving specific sectors.
While a manufacturer does not have to specialize in your industry to be the right choice for you, it is necessary to confirm that they have the capabilities and experience to serve your industry. Therefore, always check the manufacturers you are considering to ensure they can meet your industry-specific needs.
2. ServicesTo ensure a smooth and efficient production process, it is important to identify the services that each PCB manufacturer offers and ensure that they can provide the services you need. While working with a company that offers a wide range of services can be advantageous, sometimes you may require the expertise of a specialized company. Beyond assembly, here are some essential services that you should consider:
-
- Prototyping: Creating a prototype PCB before going into production can help reduce the total timeframe and costs of the production process. A manufacturer that can create accurate prototypes of your board can help you test your design and make improvements, which is more cost-effective to do earlier in the production process. This service is especially beneficial if the same company can also manufacture the boards.
-
- Layout and design services: Layout and design services can help speed up the production process. Some companies can create a complete design for you after you provide them with basic information. They can also help you solve a design problem or make changes to existing files. If designing a layout is challenging or you prefer to focus on other activities, hiring a layout specialist can be beneficial.
-
- File review and analysis: Some PCB manufacturers offer a review and analysis of your design before they start manufacturing. This service helps ensure that the manufacturer has all the necessary files and information, reducing delays after you place your order. Ensure that the company provides the results of their check in an easy-to-read format.
-
- SMT stencil production: SMT stencils made of stainless steel foil and laser cut help ensure that the solder paste is printed accurately on the PCB. Some manufacturers produce stencils to guarantee accurate production results. Ask each manufacturer whether they provide SMT stencils and the types available.
-
- DXF to Gerber conversion: The Gerber design format is the standard format used for PCB design files. If you are not using this format, look for a manufacturer that provides DXF to Gerber conversion, as it can speed up production and reduce errors.
-
- Panelization: Panelization refers to grouping boards to enable faster processing and is used mainly for high-volume production. If you plan on placing high-volume orders, look for a manufacturer that offers panelization while still allowing for any customization you may need. This can significantly decrease your timeframe for production.
-
- PCB design for manufacturability (DFM) services: Manufacturers that use a DFM process optimize every stage of the manufacturing process, from fabrication to testing to delivery. Choosing a company that uses a DFM process can help ensure that production is cost-effective and efficient, and that boards are accurate and reliable.
3. CapabilitiesTo ensure that you select a PCB manufacturer that can provide the solutions you need, it's important to consider the following capabilities:
-
- Order quantity: You should determine the minimum and maximum order sizes that each manufacturer can fill within your required timeframe. This will help you to determine if the company is able to accommodate your order volume.
-
- Lead time: You should gather information on each company's lead time for prototypes, small volume, medium volume, and high volume orders. Ensure that the company's estimated delivery time for the type of order you'll be placing is compatible with your requirements. Additionally, check whether the company provides a quick turnaround service for rush orders. Some manufacturers offer an order tracking service, which enables you to easily check the status of your order and when you can expect it to arrive.
-
- Number of layers: Determine whether a manufacturer can provide bare, single-layer, double-layer, and multi-layer boards, as well as how many layers they can accommodate. The number of layers likely varies for flexible, flex-rigid, and rigid boards, so make sure you get the details for the types of boards you plan on ordering.
-
- Surface finish options: PCB surface finishes protect the copper surface of boards from corrosion and provide other advantages, such as making soldering easier. There are a variety of possible surface finish options available, and different PCB manufacturers may offer different ones. Possible surface finishes include electroless nickel immersion gold (ENIG), immersion silver, immersion tin, hot air solder leveling (HASL), organic solderability preservative (OSP), and hard gold.
-
- Via options: Determine what types of vias each manufacturer can provide, including copper-filled vias, blind vias, buried vias, or micro vias. Ensure that each manufacturer can provide the kinds of vias you need.
-
- Controlled impedance modeling: For boards that operate in high frequency ranges, you may need controlled impedance. If you need repeatable high-frequency performance, check that manufacturers offer controlled impedance modeling and have knowledge in trace impedance.
-
- Specs and tolerances: Check the kinds of tolerances that each manufacturer can manufacture to, and whether they meet your requirements. One critical spec to check is the drill aspect ratio, which refers to the ratio of the PCB's thickness to the drilled hole's diameter and relates to the ability to provide copper plated holes using chemical processes. As the aspect ratio increases — that is, as the holes get smaller — achieving reliable plating becomes more difficult. Other important specs include outer layer trace and space, inner layer trace and space, minimum drilled hole, standard drilled hole, minimum pad size, minimum feature to edge, and minimum core thickness.
4. FacilitiesTo ensure that the PCB manufacturer you choose is the right partner for your project, you need to consider the facilities they have. The company's facilities can affect various aspects such as their capabilities, cost-effectiveness, efficiency, and more.
You can conduct independent research or ask questions to determine how many facilities each company has and their locations. Having multiple locations can be beneficial because it provides you with more options, and there is a higher chance that a plant will be near your location. Selecting a company with a facility near your location can reduce shipping time and shipping cost. However, overseas facilities may offer lower prices for producing PCBs.
You should also consider the equipment the company has at their facilities, as it affects their capabilities, manufacturing speed, and order volumes they can handle. Companies with advanced equipment may produce higher quality products, provided they have the necessary skills and the appropriate processes in place.
